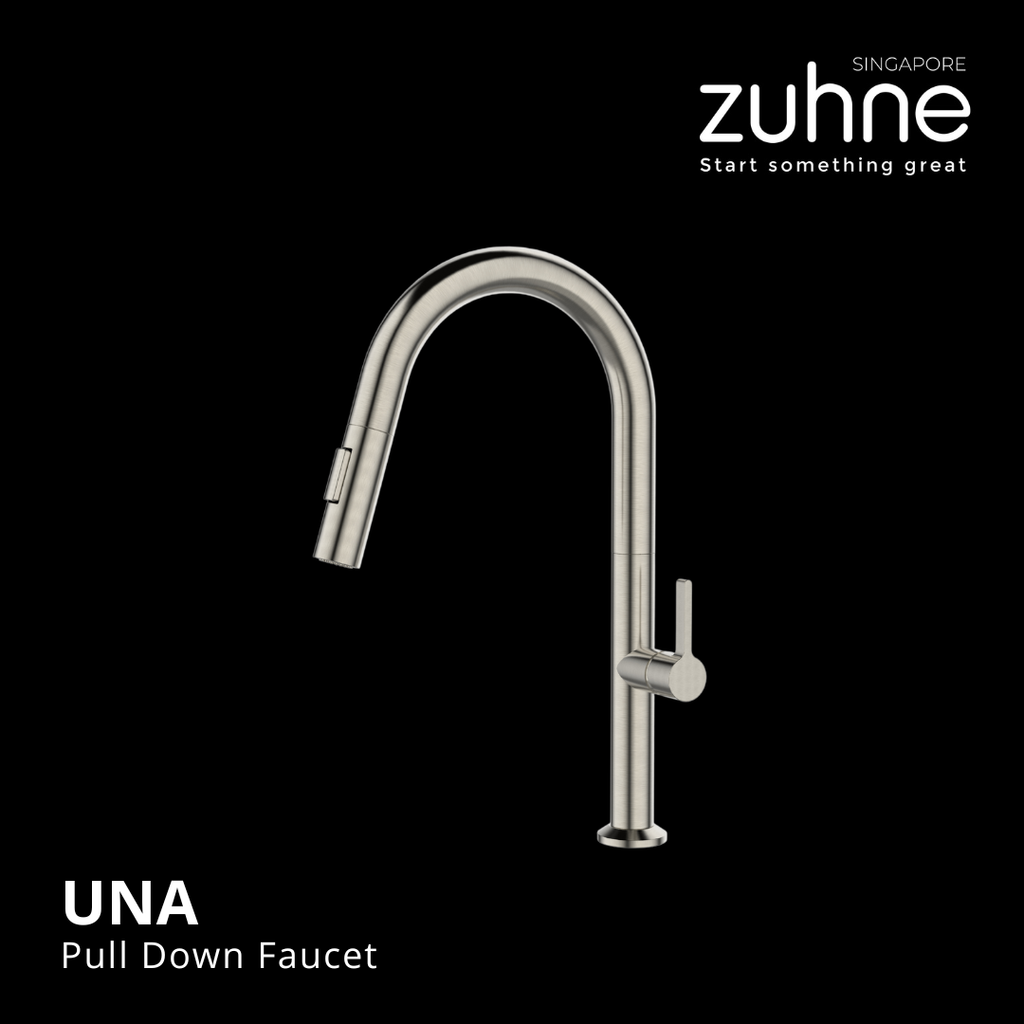

A pull-down kitchen mixer made from solid 316 marine-grade stainless steel. Choose it to complete a new Zuhne sink in your BTO, or to replace a tired tap in any condo kitchen with a standard 35 mm tap hole. It fits Singapore fittings with no adapters.
Why Una
Everyday Use
Will It Suit My Kitchen?

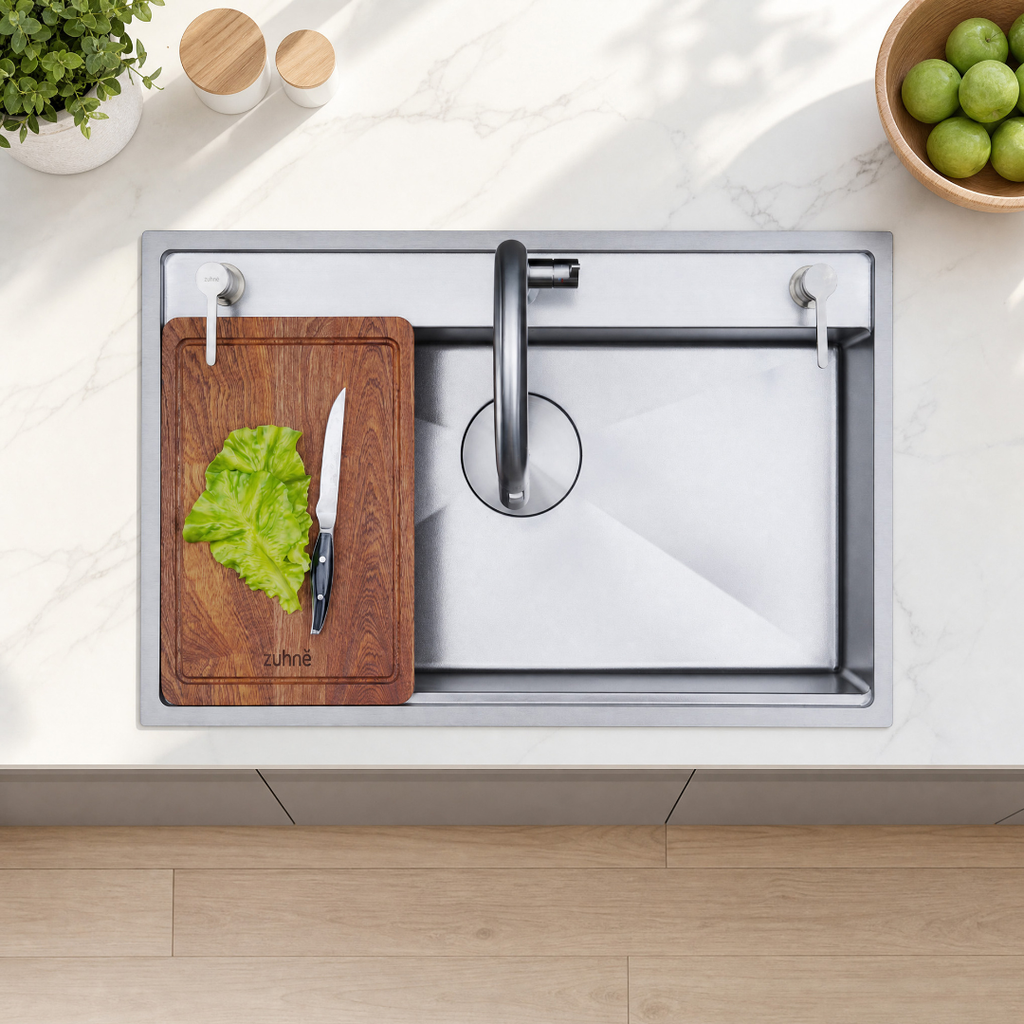

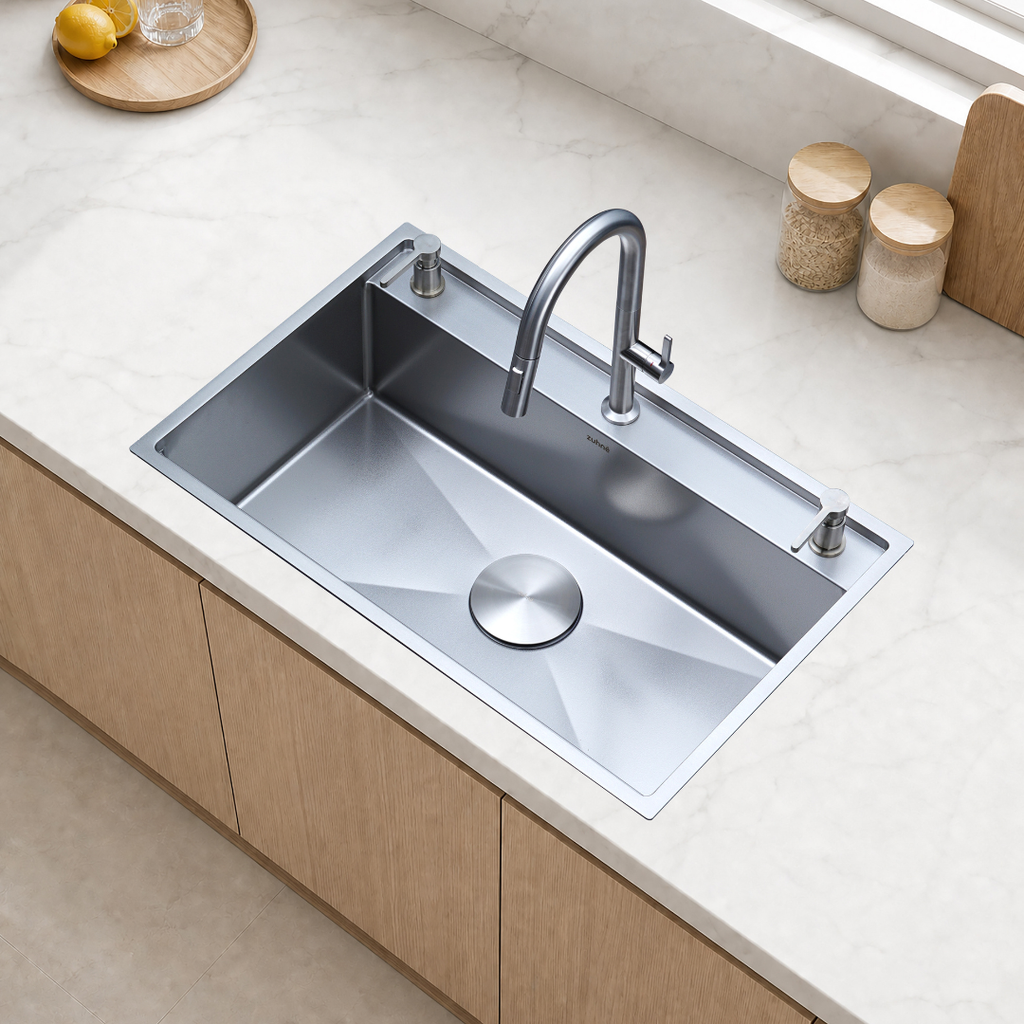

Buying a sink as well? The Oslo Lunar, Oslo Honeycomb and Neste bundles include Una and a free Qube sensor bin.

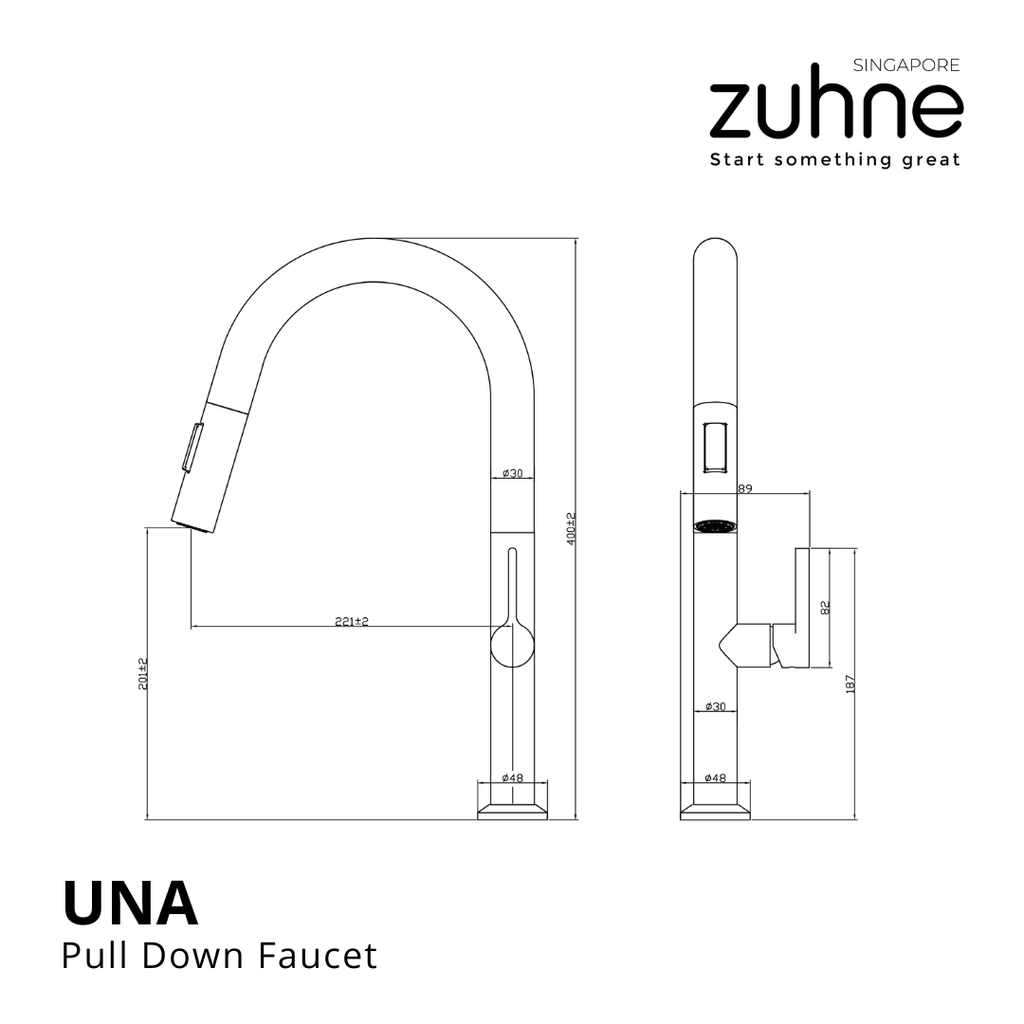

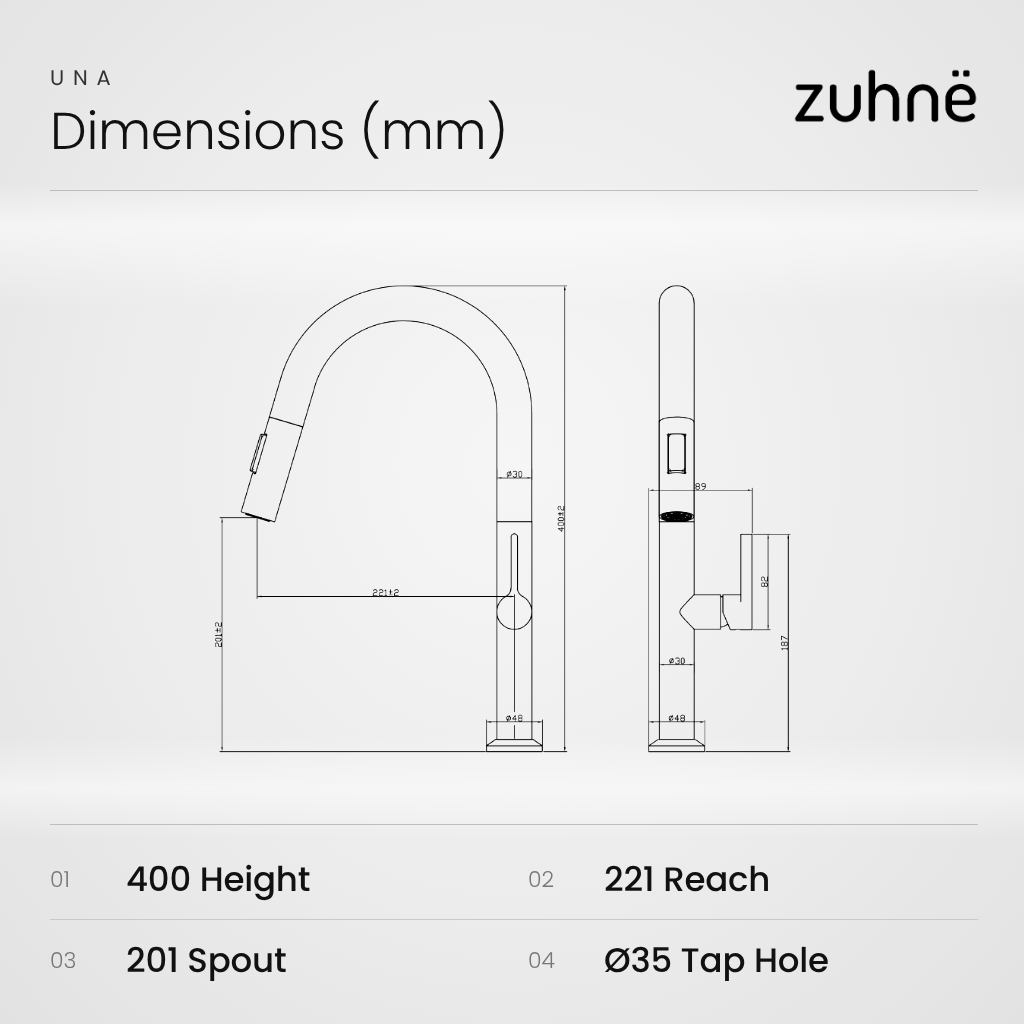

Dimensions
| Overall height | 400 mm |
| Spout height | 201 mm, counter to aerator |
| Spout reach | 221 mm |
| Body / base | Ø 30 mm column on a Ø 48 mm base |
| Tap hole | Ø 35 mm, in a counter or deck up to 30 mm thick |
| Material | Solid 316 marine-grade stainless steel, lead-free |
| Type | Single-lever hot and cold pull-down mixer |
| Spout | 360° swivel, high arc |
| Spray modes | Aerated stream and rinse spray |
| Cartridge | Sedal ceramic (Spain), 500,000 cycles |
| Aerator | Neoperl (Switzerland), touch-clean |
| Flow rate | Under 6 L/min, water-saving |
| Water supply | 0.5 to 7.5 bar, hot water up to 60 °C |
| Supply hoses | 2 × braided stainless steel, G1/2 × 60 cm |
| Finishes | Natural Steel, Graphite Black |
| Warranty | 5-year parts warranty |
Installation

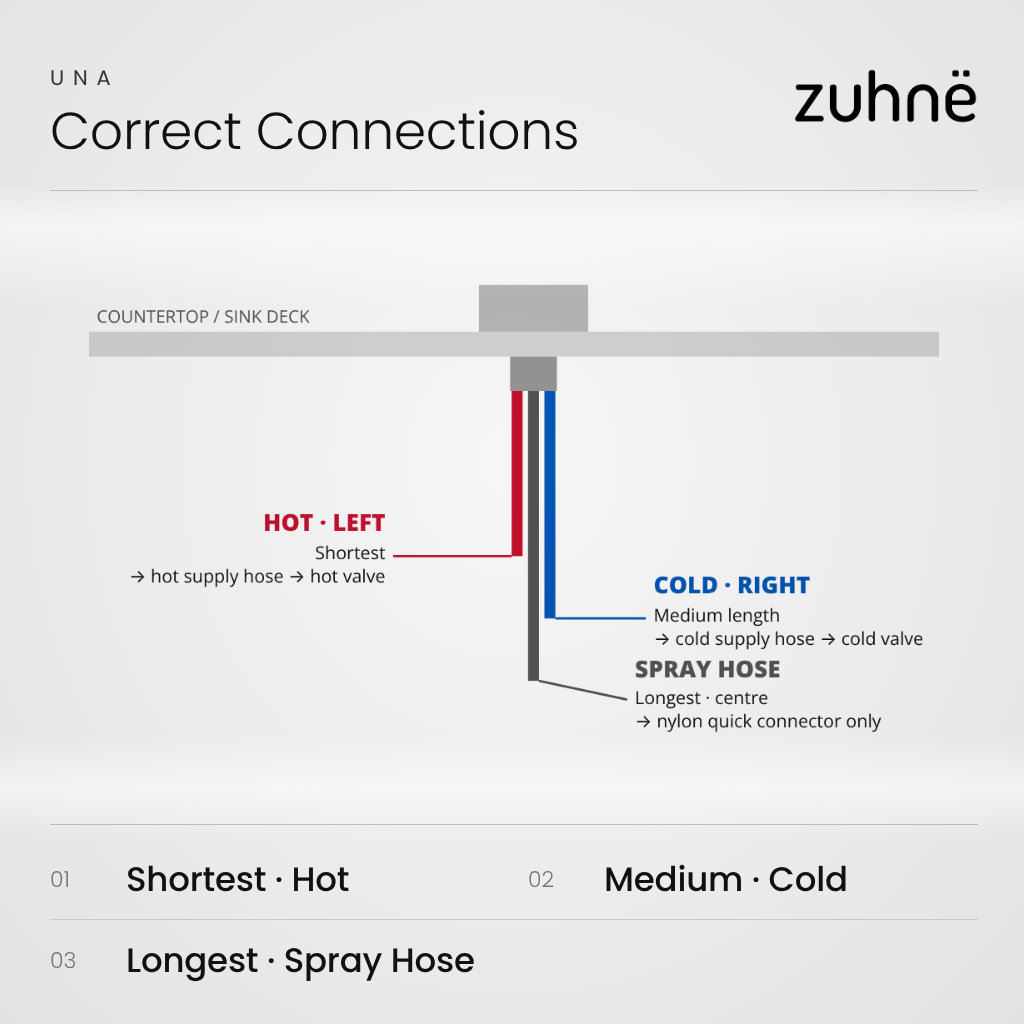

For your plumber: under the tap body are three metal inserts of different lengths. Each has one job. Connecting them the wrong way round is the most common installation fault, so please check them before connecting anything.
No hot water supply? Una still works. Your plumber splits the cold line with a standard T or Y splitter and connects cold water to both hoses.

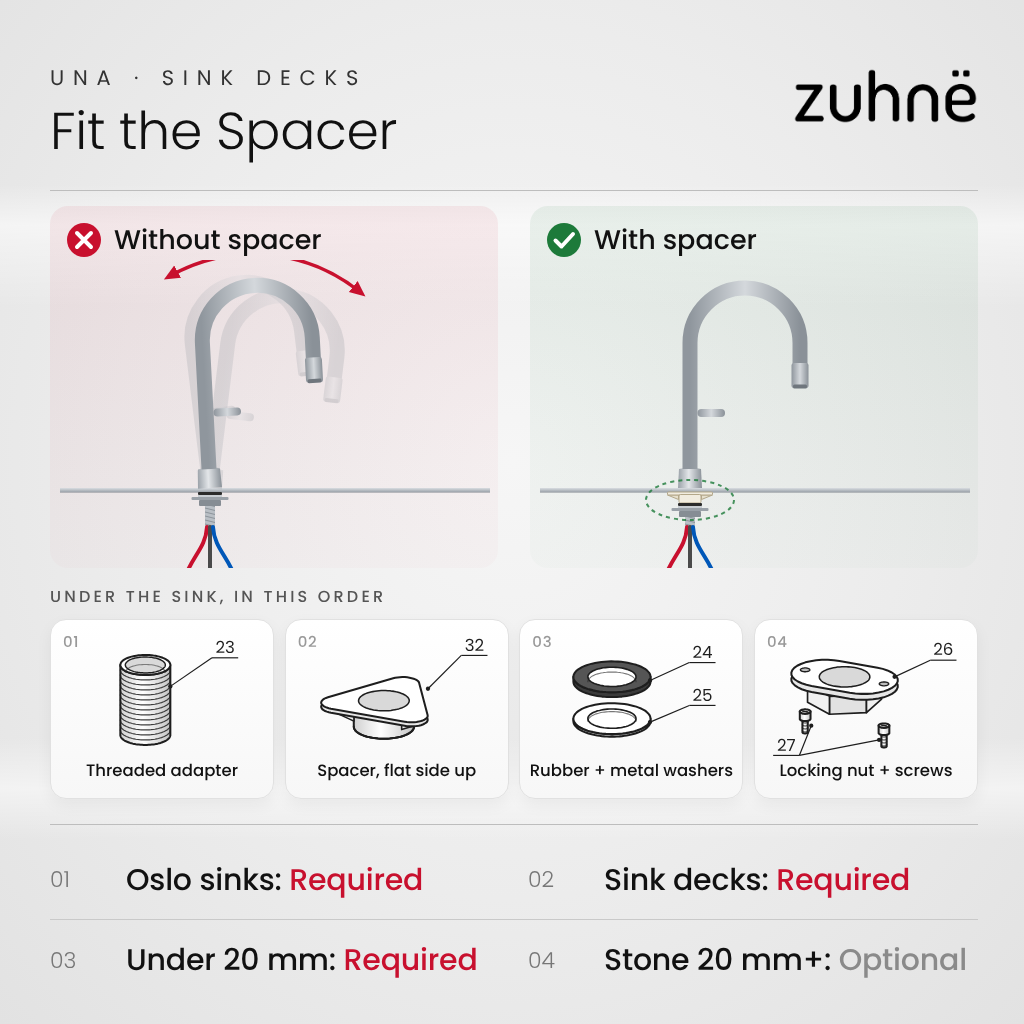

Required on Oslo sinks, any sink deck, and countertops under 20 mm thick. Without the triangular spacer, the tap can work loose and wobble. The spacer is in the box. Under the sink, slide it onto the threaded adapter (part 23) flat side up against the deck, then fit the rubber washer (24), metal washer (25), locking nut (26) and its screws (27). Part numbers match the exploded view in the Installation Guide.
Installing? Hand the Critical Plumber Checklist in Downloads to your plumber. One page, English and 中文.
What's Included
Downloads
Files open in a new tab.
Care and Warranty
Every Una comes with a 5-year parts warranty against defects in materials and workmanship, including leaks caused by a defect. Labour is not included. Installation must follow the guide, including the correct insert connections. The full terms are in the Installation, Care & Warranty Guide above.
Everyday care is simple: mild dish soap and a soft cloth, then wipe dry. Avoid bleach, acidic cleaners, steel wool and scouring pads. If the flow drops, clean the aerator screen with the key provided.
Questions
Una needs a 35 mm hole, which is the standard size for kitchen taps, in a counter or sink deck up to 30 mm thick. If your current tap has a single hole of this size, Una will fit.
No. Una connects to standard Singapore 1/2" angle valves with the hoses in the box.
The shortest is hot, on the left. The medium one is cold, on the right. The longest, in the centre, is only for the spray hose's nylon connector and must never be connected to a water supply. See Installation above, or the Critical Plumber Checklist in Downloads.
Yes. If your kitchen only has a cold line, your plumber can fit a standard T or Y splitter to feed both the hot and cold hoses with cold water.

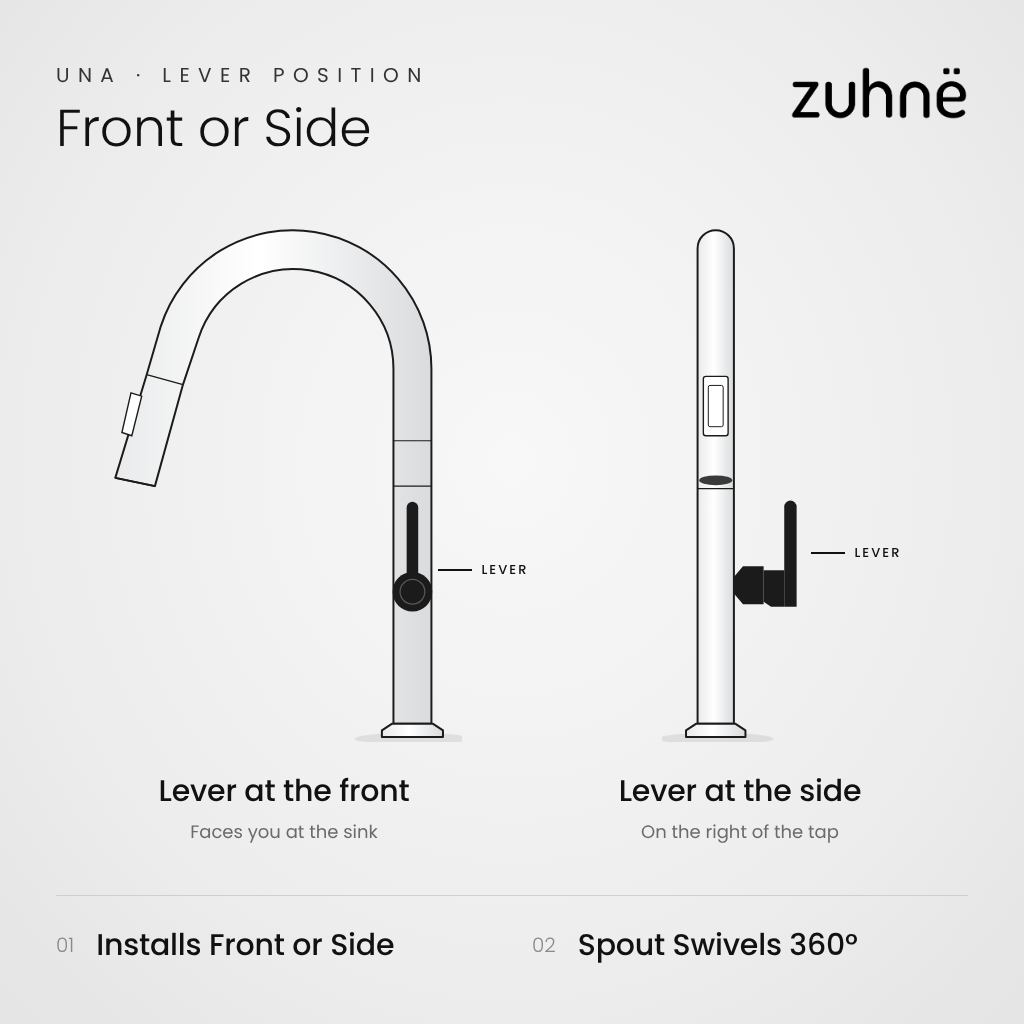

Yes, either way. The lever position is set when the tap is installed, so tell your plumber which you prefer before the tap is tightened. Changing it later means loosening and refitting the tap. The spout swivels 360° in both positions, so it always reaches the whole sink.

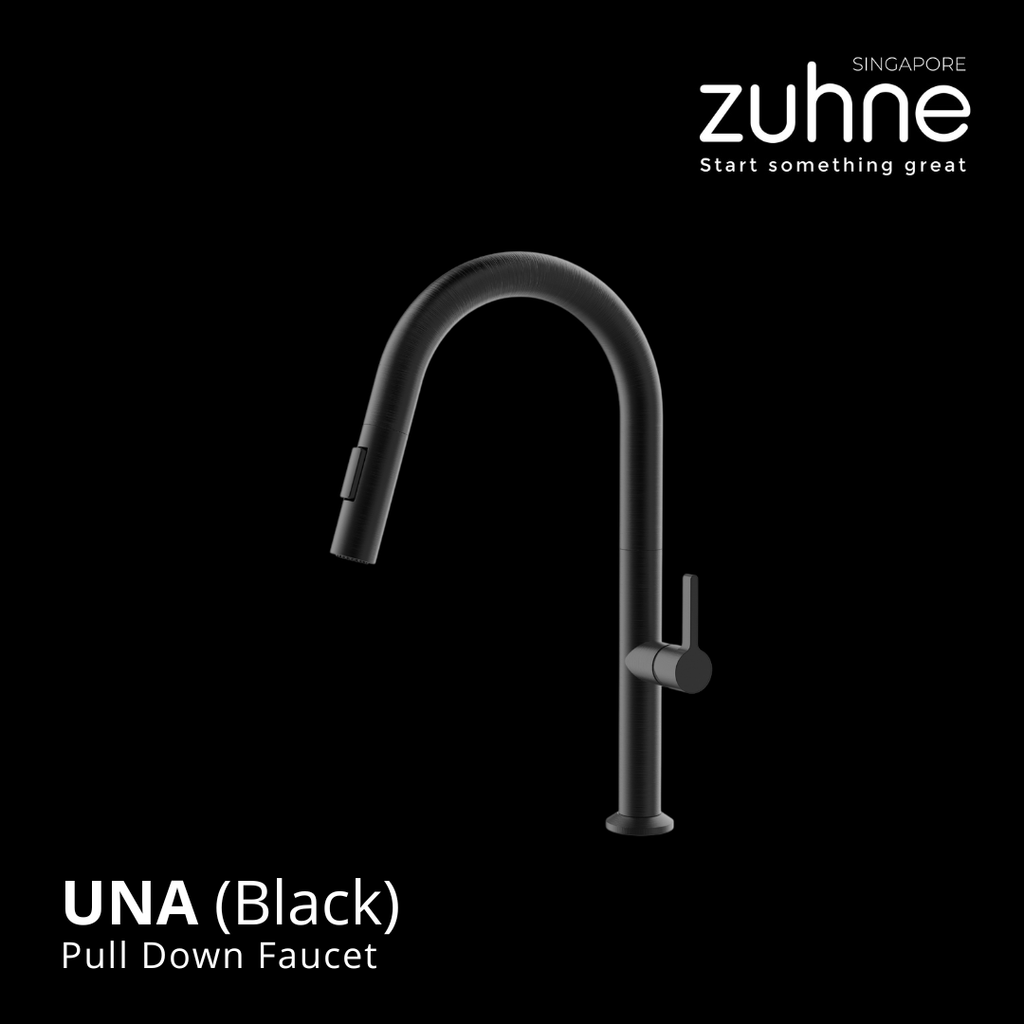

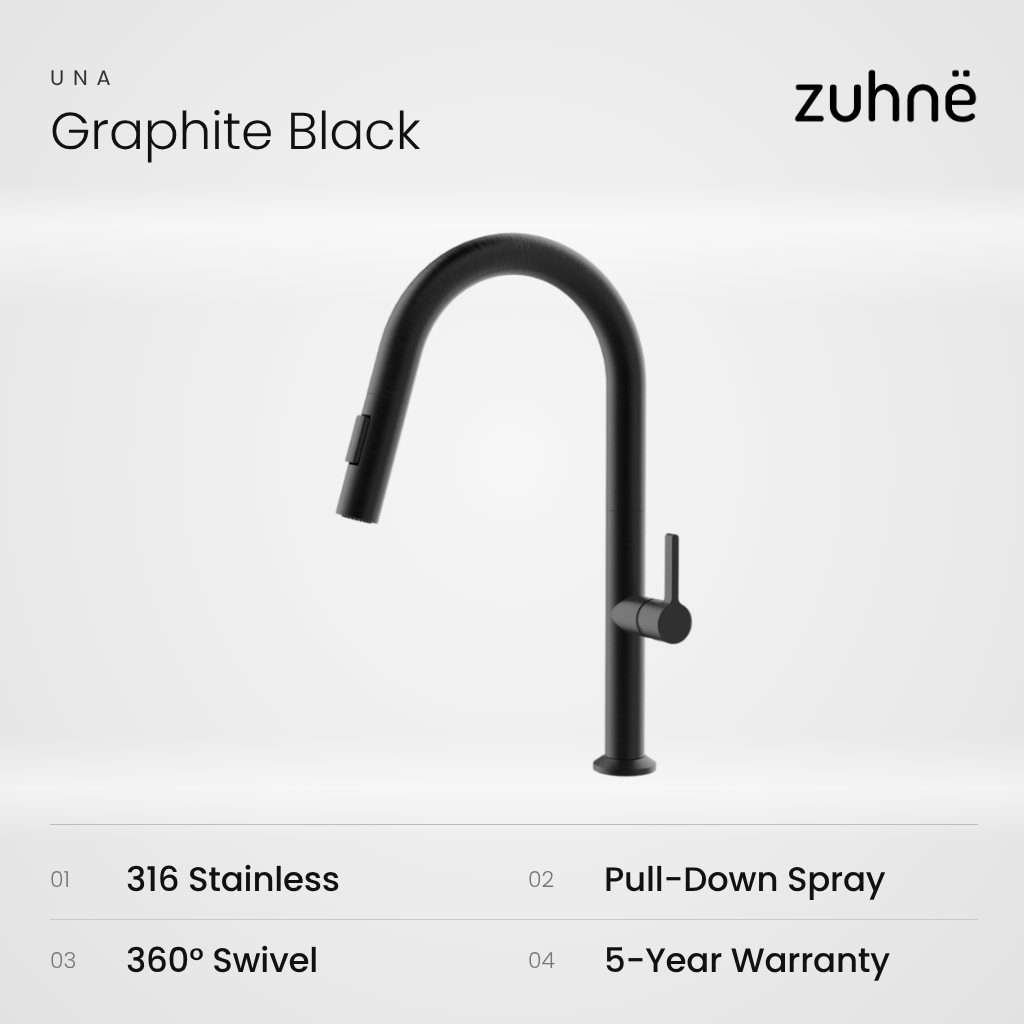

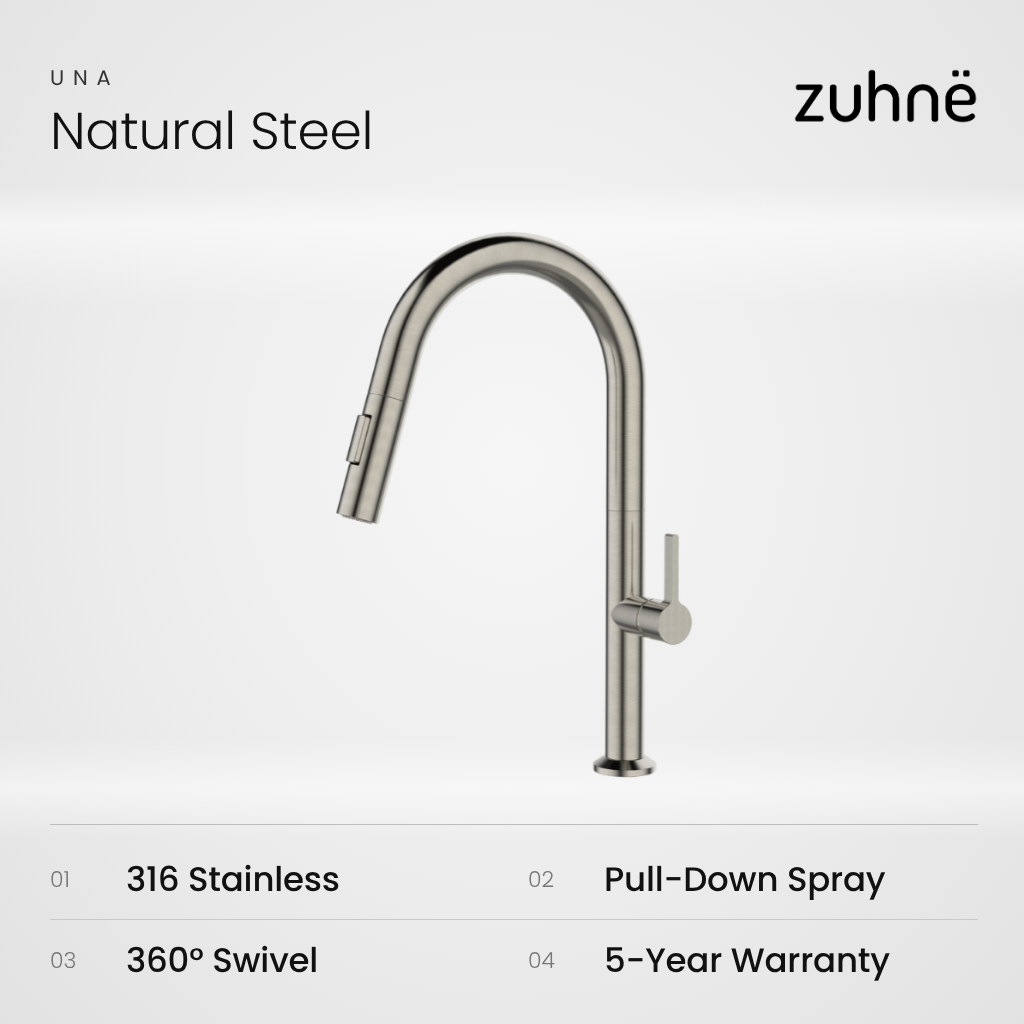

Una comes in Natural Steel and Graphite Black. Natural Steel matches Zuhne's Natural sinks. Graphite Black is a deep, dark finish, a darker shade than Zuhne's Gunmetal sinks.
A 5-year parts warranty covers defects in materials and workmanship, including leaks caused by a defect. It provides replacement parts. Labour, and damage from installation that doesn't follow the guide, are not covered.
